DOUBLE DISC
POLISHING MACHINE
POLISHING MACHINE MANUFACTURERS
Double disc polishing machine manufacturers to help of metallurgical samples mirror polishing to give microscopic view and analysis. In this machine have Fiber reinforced body rust free designed and Machine occupied less space and electrical operated dual (230 V AC and 230V DC) power. The machine indicates running RPM by digital display at the mean while need to set required the RPM. The electrical speed adjuster by variable speed controller, speed control have long life and durable. The polishing machine have separated water line to help while during polishing and wastewater through send by drain plug. This machine namely double disc, one disc recommended water emery like 180,220, 320,420, 600, 1000, 1200 grades etc., another disc to use alumina or diamond polishing switch change the machine. The alumina or diamond paste disc to provide to help the metallurgy microscopic views and micro hardness survey etc., (alumina paste with velvet cloth magic). The alumina is a hard particles, the hard particles to develop higher friction. It will be easy to material removal and grinding, samples hold at 10-15 minutes like mirror polish and used for micro examination ready for the samples. Similarly, if needed diamond paste polishing it also done this machine.

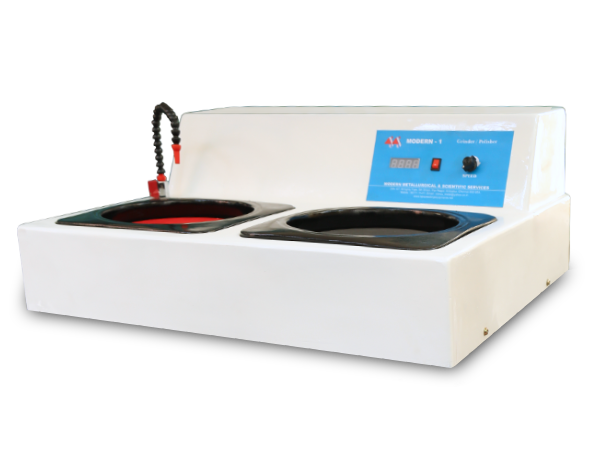

DOUBLE DISC VARIABLE SPEED GRINDER/POLISHER (MODERN -1)
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Model:DC MOTOR | 1 No |
| 2 | 8"double disc polisher | |
| 3 | Variable speed from 100-800 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | DC Drive LED Display with controller | |
| 7 | 0.25HP High Torque DC Motor | |
| 8 | Aluminum Disc 8"Dia (Interchangeable) | 2 Nos |
| 9 | Flexible water jet with control Valve | 1 No |
| 10 | Holding Spring(Stainless steel) | 1 No |
| 11 | V Belt Used to Rotate Disc For long Life | |
| 12 | Stainless Steel Holding Ring Press type | 1 No |
| 13 | Lid | 2 Nos |
| 14 | Splash Guard | 2 Nos |
| 15 | Size: 730x670x320mm | POWER SUPPLY 230/50HZ, L+N+ E | |
| 16 | Polishing Machine Table (fully covered Consumables Storage ) | 1 No |
| 17 | Table Size:740x680x710mm |

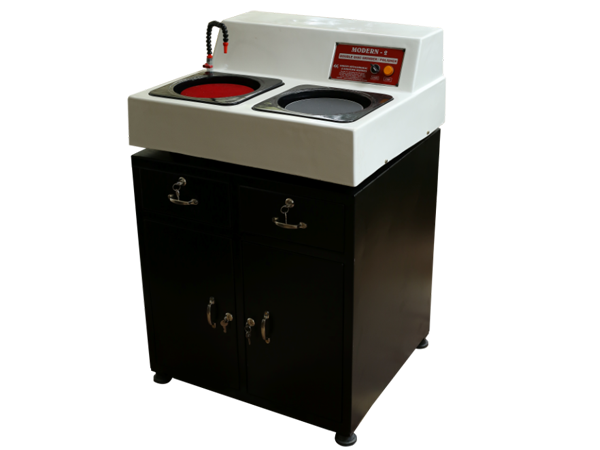

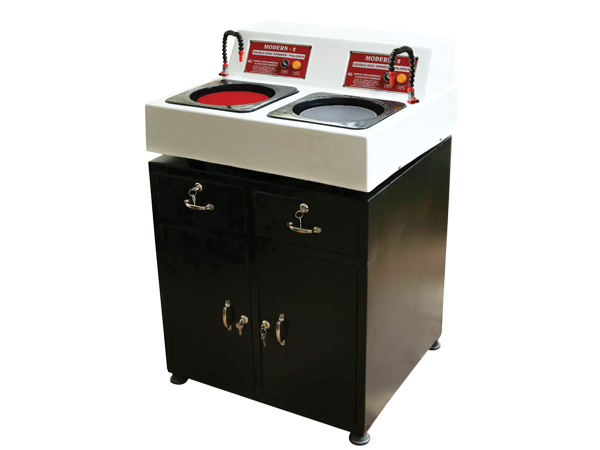

DOUBLE DISC GRINDER/POLISHER (MODERN -2)
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Model: AC MOTOR | 1 No |
| 2 | 8"double disc polisher | |
| 3 | Fixed speed 800 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | 0.5HP AC Motor | |
| 7 | Aluminum Disc 8"Dia (Interchangeable) | 2 Nos |
| 8 | Flexible water jet with control Valve | 1 No |
| 9 | Holding Spring(Stainless steel) | 1 No |
| 10 | V Belt Used to Rotate Disc For long Life | |
| 11 | Stainless Steel Holding Ring Press type | |
| 12 | Lid | 2 Nos |
| 13 | Splash Guard | 2 Nos |
| 14 | Size: 730x670x320mm | |
| 15 | Polishing Machine Table (fully covered Consumables Storage ) | POWER SUPPLY 230/50HZ, L+N+ E | 1 No |
| 16 | Table Size:740x680x710mm |
| 1B | Optional Accessories | |
|---|---|---|
| B | Additional Aluminium Disc Set (Cloth & Clamping Spring) | 1 No |
| C | Belt | 1 No |

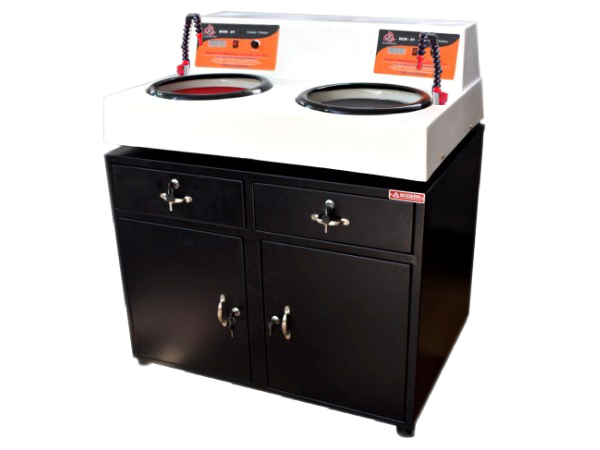

DOUBLE DISC VARIABLE SPEED GRINDER/POLISHER (MODERN -DCM-01 )
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Model:DC MOTOR | 1 No |
| 2 | 12"double disc polisher | |
| 3 | Variable speed from 100-800 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | DC Drive LED Display | |
| 7 | 0.5HP High Torque DC Motor | |
| 8 | Aluminum Disc 12"Dia (Interchangeable) | 2 Nos |
| 9 | Flexible water jet with control Valve | 2 Nos |
| 10 | Holding Spring(Stainless steel) | 1 No |
| 11 | V Belt Used to Rotate Disc For long Life | |
| 12 | Stainless Steel Holding Ring Press type | |
| 13 | Lid | 2 Nos |
| 14 | Splash Guard | 2 Nos |
| 15 | Size: 960 x 720 x 310mm | POWER SUPPLY 230/50HZ, L+N+ E | |
| 16 | Polishing Machine Table (fully covered Consumables Storage ) | 1 No |
| 17 | Table size: 970x730x710mm |

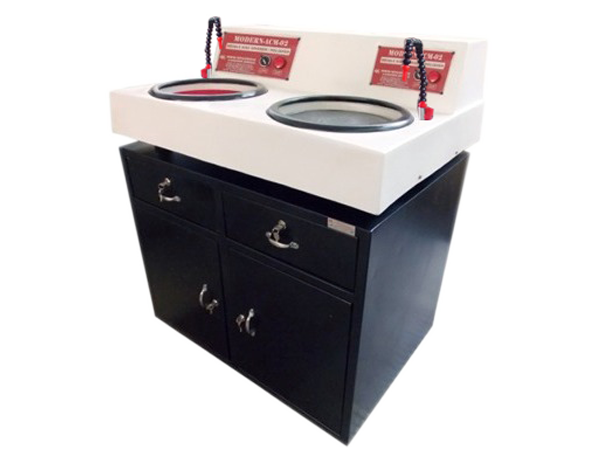

DOUBLE DISC GRINDER/POLISHER (MODERN -ACM-02 )
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Model:AC MOTOR | 1 No |
| 2 | 12"double disc polisher | |
| 3 | Fixed speed 800 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | 0.5HP AC Motor | |
| 7 | Aluminum Disc 12"Dia (Interchangeable) | 2 Nos |
| 8 | Holding Spring Flexible water jet with control Valve (Stainless steel) | 2 Nos |
| 9 | V Belt Used to Rotate Disc For long Life | |
| 10 | Stainless Steel Holding Ring Press type | |
| 11 | Lid | 2 Nos |
| 12 | Splash Guard | 2 Nos |
| 13 | Size: 960 x 720 x330mm | |
| 14 | Polishing Machine Table (fully covered Consumables Storage ) | 1 No |
| 15 | Table size: 970x730x710mm | POWER SUPPLY 230/50HZ, L+N+ E |
DOUBLE DISC VARIABLE SPEED GRINDER/POLISHER (MODERN -IDCM-03 )
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Model:DC MOTOR | 1 No |
| 2 | 12"double disc polisher | |
| 3 | Variable speed from 100-800 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | DC Drive LED Display ( Independent Drives ) | 2 Nos |
| 7 | 0.25HP High Torque DC Motor | 2 Nos |
| 8 | Aluminum Disc 12"Dia (Interchangeable) | 2 Nos |
| 9 | Holding Spring(Stainless steel) | 1 No |
| 10 | Extra Power for Individual Motor , Drive Operation | |
| 11 | V Belt Used to Rotate Disc For long Life | |
| 12 | Stainless Steel Holding Ring Press type | |
| 13 | Flexible water jet with control valve | 2 Nos |
| 14 | Splash Guard | 2 Nos |
| 15 | Size: 960 x 720 x 330mm | POWER SUPPLY 230/50HZ, L+N+ E | |
| 16 | Polishing Machine Table (fully covered Consumables Storage ) | 1 No |
| 17 | Table size: 970x730x710mm |
| 1B | Optional Accessories | |
|---|---|---|
| B | Additional Aluminium Disc Set (Cloth & Clamping Spring) | 1 No |
| C | Belt | 1 No |
DOUBLE DISC GRINDER/POLISHER (MODERN -IACM-04 )
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Model:AC MOTOR | 1 No |
| 2 | 12"double disc polisher | |
| 3 | Fixed speed 800 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | 0.5HP AC Motor ( Independent Motor ) | 2 Nos |
| 7 | Aluminum Disc 12"Dia (Interchangeable) | 2 Nos |
| 8 | Holding Spring(Stainless steel) | 1 No |
| 9 | Flexible water jet with control Valve | 2 Nos |
| 10 | Extra Power for Individual Motor Operation | |
| 11 | V Belt Used to Rotate Disc For long Life | |
| 12 | Stainless Steel Holding Ring Press type | |
| 13 | Flexible water jet with control valve | 2 Nos |
| 14 | Splash Guard | 2 Nos |
| 15 | Size: 960 x 720 x 330mm | POWER SUPPLY 230/50HZ, L+N+ E | |
| 16 | Polishing Machine Table (fully covered Consumables Storage ) | |
| 17 | Table size: 970x730x710mm |

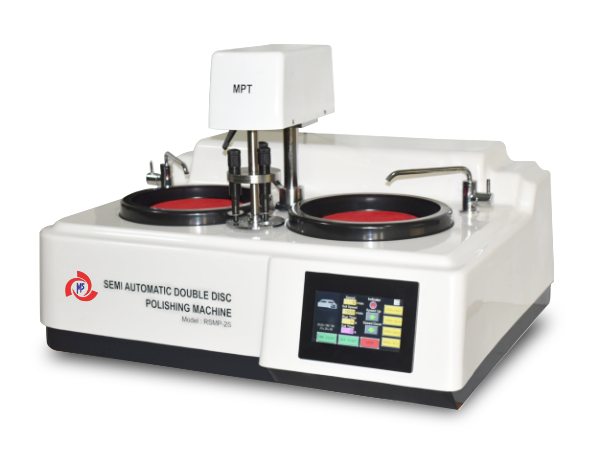

SEMI AUTOMATIC POLISHING MACHINE WITH SEMI AUTOMATIC HEAD
Feature:
In the preparation process of the metallographic sample, the pre-grinding of the sample is an indispensable pre-process before polishing. After the sample is pre-polished, the effect of the sample preparation can be greatly improved. The grinding and polishing machine is designed by multi-faceted research and collection of opinions and requirements of various users, and completely uses stainless steel standard parts. The machine will never rust, which greatly increases the product's performance. It is the ideal equipment for pre-grinding the sample. It is easy to use, safe and reliable. It is the ideal sample for factories, research institutes and colleges and universities.
Technical Data:
'MOdern' Semi Automatic Double Disc Polishing Machine Model
RSMP-2S + MPT is having 200mm dia two polishing interchangeable discs made of brass or aluminum with polishing cloth holding clamps. Discs rotating speed is 50 to 1000 RPM which is controlled by Front Panel Touch Screen having stepless AC drive with digital LED display of RPM. Outer body of the
machine is fabricated form strong FRP to avoid rusting. Fitted with heavy duty high torque 1 HP motor.
MPT head suitable for polishing three samples of dia 30mm each at a time, with 0-40 N pressure. Head rotates clockwise at a fixed speed of 50 RPM.
For fluid /water supply, two taps with adjustable valves are fitted.
Water drainage port is built-in the machine.
Machine operates on 220V-230V / 50 Hz / Single Phase.
Supply complete with following accessories :
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Drain Pipe | 1 No |
| 2 | Sticker type polishing cloth 8” dia | 2 Nos |
| 3 | 6 Different Grit polishing papers | 2 each |
| 4 | Operating Manual | 1 No |
| S.No. | Optional Accessories |
|---|---|
| 1 | Lavigated Polishing Alumina Paste Grade-I |
| 2 | Lavigated Polishing Alumina Paste Grade-III |
| 3 | Diamond Fluid 200ml |
| 4 | Diamond Paste 1-OS 5gm. |
| 5 | Cold Setting Compound |

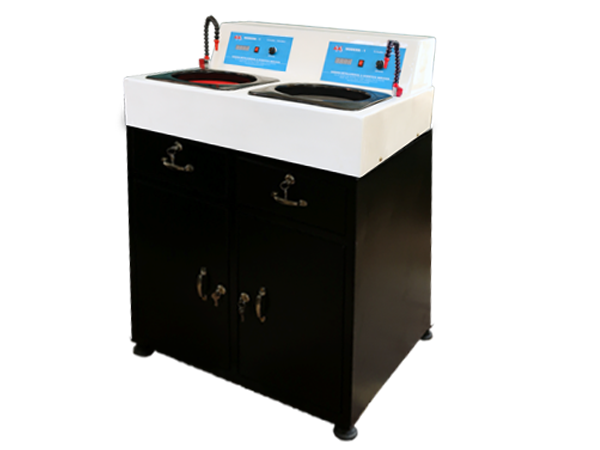

MODERN INDUJUVAL DOUBLE DISC VARIABLE SPEED GRINDER/POLISHER (MODERN -IDCM-05 )
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | MODEL: DC MOTOR ( MODERN –IDCM-05) HSN: 84601100 | 1 No |
| 2 | 8"Double disc polisher | |
| 3 | Variable speed from 100-900 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | V Belt Used for Rotate Disc For Long Life | |
| 7 | DC Drive LED Display ( Independent Drives ) | 2 Nos |
| 8 | 0.25HP High Torque DC Motor | 2 Nos |
| 9 | Aluminum Disc 8"Dia (Interchangeable) | 2 Nos |
| 10 | Holding Spring(Stainless steel) | 2 Nos |
| 11 | Flexible Water Jet with Control Valve | 2 Nos |
| 12 | Splash Guard | 2 Nos |
| 13 | Lid | 2 Nos |
| 14 | Paper Holding Band For ( Stainless Steel ) | 2 Nos |
| 15 | Extra Power for Individual Motor , Drive Operation | |
| 16 | Power Supply 230/ 50 Hz, L+N+ E | |
| 17 | Size: 740 x 680 x 320mm |
MODERN INDUJUVAL DOUBLE DISC FIXED SPEED GRINDER/POLISHER (MODERN -IACM-06 )
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Model: AC MOTOR ( MODERN-IACM-06 ) HSN: 84601100 | 1 No |
| 2 | 8" Double disc polisher | |
| 3 | Fixed speed 800 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | V Belt used for Rotate Disc for Long Life | |
| 7 | 0.5HP AC Motor ( Independent Motor ) | 2 Nos |
| 8 | Aluminum Disc 8"Dia (Inter changeable) | 2 Nos |
| 9 | Holding Spring (Stainless steel) | 2 Nos |
| 10 | Flexible water jet with control Valve | 2 Nos |
| 11 | Splash Guard | 2 Nos |
| 12 | Lid | 2 Nos |
| 12 | Paper Holding Band For ( Stainless Steel ) | 2 Nos |
| 13 | Power Supply 230/50 Hz, L+N+E | |
| 14 | Extra Power for Individual Motor Operation | |
| 15 | Size: 740 x 680 x 320mm |
MODERN INDUJUVAL FOUR DISC VARIABLE SPEED GRINDER/POLISHER (MODERN -FDPM )
| S.No. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | HEAVY DUTY FLOOR MODEL | 1 No |
| 2 | 12"Double disc polisher | |
| 3 | Variable speed from 100-900 RPM | |
| 4 | Rigid table top corrosion proof FRP cabinet | |
| 5 | Corrosion Resistant wash bowl free flow drain | |
| 6 | V Belt Used for Rotate Disc For Long Life | |
| 7 | DC Drive LED Display ( Independent Drives ) | 4 Nos |
| 8 | 0.25HP High Torque DC Motor | 4 Nos |
| 9 | Aluminum Disc 12"Dia | 4 Nos |
| 10 | Holding Spring(Stainless steel) | 4 Nos |
| 11 | Flexible Water Jet with Control Valve | 4 Nos |
| 12 | Splash Guard | 4 Nos |
| 13 | Lid | 4 Nos |
| 14 | Paper Holding Band For ( Stainless Steel ) | 4 Nos |
| 15 | Power Supply 230/ 50 Hz, L+N+ E | |
| 16 | Size: 960 x 720 x 330mm |
