Cameras
INTRODUCTION
We have recognized our name in the manufacturing of wide variety of microscopes and Digital Microscope Camera is one such our impeccable offering. This one is amazing offering results with great precision. The microscope camera is offered at market leading rates.
DIGI EYE 210
| Features |
|---|
| 2.0 megapixels with progressive scanning CMOS image sensor. |
| No compression, no interpolation. |
| Support still image capture(JPG,BMP) |
| USB2.0 interface, up to 480MPS, external power no need. |
| Interfaced to a computer via USB2.0 technology for rapid image download. |
| Plug-to-use, suitable for shooting of any standard biological, stereo and metallurgical microscopes. |
| Ease of operation; only take 5 minutes to master the friendly software. |
| Standard C-Mount makes connection to any microscope easy. Macro lens setups are also supported. |
| Fully integrated package with digital camera and imaging software for managing your imaging work flow. |
| Data can be shared, stored and edit, real-time preview function offers you the greatest experience with the microscope. |
| Videotaping is available, simple to store and transfer when compression mode is selected; |
| Specifications | |
|---|---|
| Sensor | 2.0M CMOS |
| Resolution | 1600X1200(8bit) |
| Pixels Size | 3.4μm×3.4μm |
| Frame Rate | 10fps@1600x1200;30 fps@640 ×480 |
| Shutter | Electronic |
| S/N Ratio | 43 dB |
| Scanning Mode | Progressive scanning |
| Sensitivity | 1.0 V/ lux-sec (550nm) |
| Data Interface | USB2.0 (480 Mbit / sec) |
| Power Supply | DC 5V ± 5% |
| Electricity | ≈200 mA |
| White Balance | Auto one-touch |
| Exposure control | 10μs–32ms,Auto exposure |
| Software | Display/Film/Video |
| Operating Temp | 0°C ~ 60°C |
DIGIEYE 510
| Features |
|---|
| 5.0 megapixels with progressive scanning CMOS image sensor. |
| No compression, no interpolation. |
| Support still image capture(JPG,BMP) |
| USB2.0 interface, up to 480MPS, external power no need. |
| Interfaced to a computer via USB2.0 technology for rapid image download. |
| Plug-to-use, suitable for shooting of any standard biological, stereo and metallurgical microscopes. |
| Ease of operation; only take 5 minutes to master the friendly software. |
| Standard C-Mount makes connection to any microscope easy. Macro lens setups are also supported. |
| Fully integrated package with digital camera and imaging software for managing your imaging work flow. |
| Data can be shared, stored and edit, real-time preview function offers you the greatest experience with the microscope. |
| Videotaping is available, simple to store and transfer when compression mode is selected; |
| Specifications | |
|---|---|
| Sensor | 1/ 2.5" CMOS, MICRON (MT9P031) |
| Resolution | 2592×1944(8bit) |
| Pixels Size | 2.2μm×2.2μm |
| Frame Rate | 8fps@2592×1944, 30fps@640 ×480 |
| Shutter | Electronic |
| S/N Ratio | 43 dB |
| Scanning Mode | Progressive scanning |
| Sensitivity | 1.0 V/ lux-sec (550nm) |
| Data Interface | USB2.0 (480 Mbit / sec) |
| Power Supply | DC 5V ± 5% |
| Electricity | ≈200 mA |
| White Balance | Manual/Auto one-touch |
| Exposure control | 10μs–32ms,Auto exposure |
| Software | Display/Film/Video |
| Operating Temp | 0°C ~ 60°C |

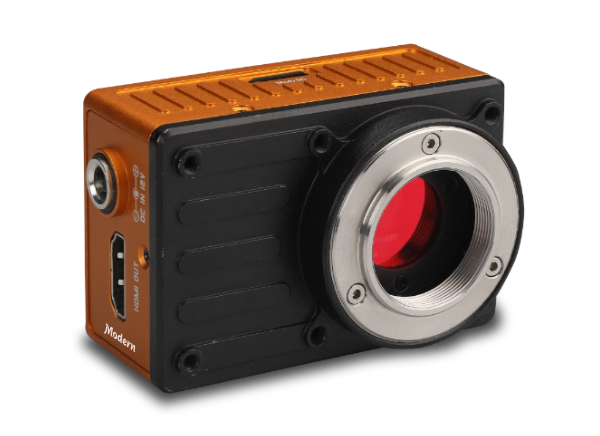

DIGI LCD
DIGI 4K is the ultimate live do play microscope camera for bright field image. DIGI 4K offer full, ultra high definition 3840 X 2160 output (up to 30fps) with 1400 TV lines of resolution. This fast frame rate enables the operator to move samples without swear lag or filter. It automatically adjusts to changes in light intensity.
Features:
3840 x 2160 – Highest Resolution HD images. (1400 TV lines of resolution).
Easy to use – 1 button white balance. Factory preprogrammed menu settings for optimal results.
Support wireless remote control operation.
| Specifications | |
|---|---|
| Sensor size | Sony Sensor 1/1.9" |
| Pixels Size | 1.85μm × 1.85μm |
| Frame rate | 30 FPS |
| Resolution | 3840 × 2160 |
| Gain Control | Support |
| Pixel Depth | 12bit |
| Definition | 4K UHD |
| Exposure | Manual/ AUTO |
| White Balance | Manual/ AUTO |
| Photo & Video | Support |
| Wide Dynamic | Support |
| Image format | TIF、BMP、JPG、RAW |
| Operating system | Windows XP 32bit；Windows 7/8/10 32/64bit |
| Camera adapter | C-mount |
| Accessories | IR remote control |
| Power supply | 12V 2A |

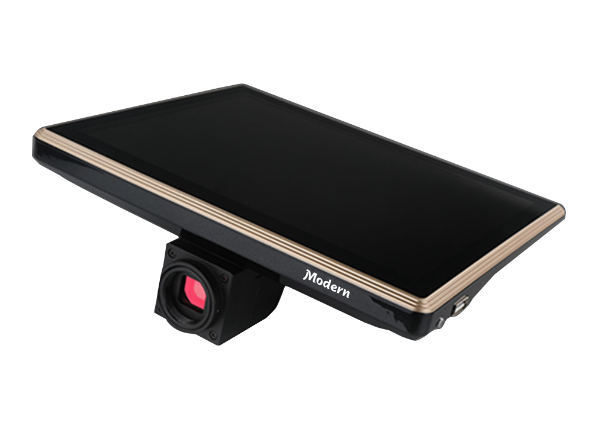

DIGI TABLET
DIGI TABLET is the smart digital microscope tablet camera equipped with 5MP color CMOS Camera and 9.7 Inches Tablet. It is developed specifically for microscopy applications. Built in the professional software including multi-functioned measurement software and particle analysis software.
| Specifications | |
|---|---|
| Camera Sensor | Aptina MT9P001 |
| Scanning Mode | Line |
| Sensor Size | 1/2.5 inch (4:3) |
| Effective Resolution | 2592H x 1944V |
| Pixels Size | 2.2µm x 2.2µm |
| Dynamic Range | 66.5dB |
| S/N Ratio | 40.5dB |
| A/D Bits | 12-bit, on-chip |
| Sensitivity | 0.53V/lux-sec（550nm） |
| Video and Frame rate | 640x480 @ 30fps, 1280X720@15fps |
| Exposure | Auto Exposure |
| Shutter Type | Electronic Rolling Shutter |
| Software Function | Snap, Video, Measurement |
| Optional Output | HDMI |
| SD Card | Support |
| Power supply | DC 5V 2A |
| PAD Size | 220*170*20mm |
| Tablet GW | 1.1kg |
